Wavlink WiFi Extender Setup Guide

Wavlink Network interface for Wavlink WiFi Extender Setup. Configure your range extenders yourself using our user manual guides. Explore our latest set-up procedures and troubleshooting tips for a hassle-free installation. Even then if you get stuck at any point, contact our tech experts to help you set, reset and resolve repeater related queries.

It is an easy process to set up your Wavlink extender at home. If you want to do this job yourself then this guide will definitely help you.

What You Need

  • Wavlink Extender
  • An existing Wi-Fi network router
  • A computer, laptop, or Smartphone
  • An internet connection

Wavlink WiFi Extender Setup: Detailed Steps

Step 1: Place Your Extender

  • Place the Wavlink extender at mid location between your router and the area where you need better coverage.
  • Place extender within the range of the router.
  • Power up the extender by plugging it directly into a power socket.

Wavlink WiFi Extender Setup

Step 2: Connect to the Router via the WPS Button

  • If your router supports WPS button, then push it after powering the extender.
  • Within 2 minutes press the WPS button of the extender.
  • Wait until the blinking light on the extender turns solid.
  • Now your extender is connected to the router successfully, configure it via web interface.

Step 3: Use Cable to Connect

  • If you want to connect the extender by using a cable, then take an Ethernet cable.
  • Connect one side of the cable to the Ethernet port of the router.
  • And another side to the port of the extender and configure your extender.

Step 4: Configure the Extender

  • Connect your computer or mobile device to the network of the Wavlink extender.
  • You can connect with an Ethernet cable or WiFi network named Wavlink_XXXXXX.
  • Once you are connected, open the web browser and type ap. setup or IP 192.168.10.1
  • Here, access the login page of the Wavlink extender.

wavlink extender configure

Step 5: Login to Wavlink Extender

  • When you reach the login page, here fill in the default username and password.
  • You can find username and password on the label of the extender.
  • After filling this, click on the login button, and go to the web interface of the extender.

Step 6: Finalize Setup

  • Choose the operation mode e.g., Range Extender, Access Point, etc. based on your network needs
  • Most users select the Wavlink Range Extender setup mode option.
  • The extender will scan for available networks. Select your existing WiFi network from the list.
  • Input the password for the selected WiFi router to allow the extender to connect to it.
  • Click on the “Save” or “Apply” button to save your configurations. The extender will reboot now.

Wavlink Range Extender setup

Step 7: Test Your Connection

  • Move to the areas where you previously had weak Wi-Fi coverage. Check if the internet connection is stable and fast.
  • If the signal is not strong, then try relocating the extender or adjusting its settings in the admin panel.

Wavlink WiFi Extender Setup via Mobile App

Above you have learnt how to complete the Wavlink WiFi extender setup by using the web interface. Now we will discuss another method for Wavlink range Extender setup. The second method for Wavlink repeater setup is via Wavlink Mobile App. Steps are as follows:

Step 1: Download Wavlink App

  • Go to Google Play Store or Apple App Store.
  • Search app by entering Wavlink into the search bar.
  • An app list will show, here download the Wavlink app.
  • Install the app on the Mobile device.

download wavlink app

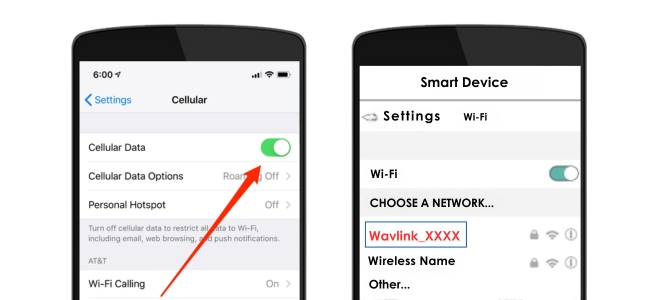

Step 2: Connect to the Wavlink Extender

  • Turn off the cellular internet of your mobile device.
  • Connect your mobile to the network of an extender named Wavlink_XXXX.
  • After that, open the app and it will ask you to log in.

connect to wavlink extender

Step 3: Login to the Wavlink App

  • When you come to the login page, here enter default login credentials.
  • Find these login credentials on the label of the router.
  • You can also create a new account by clicking on Create Account.
  • Login and access the dashboard of the Wavlink app.

Step 4: Connect Extender to the App

  • Navigate to the My Device option in the app and click on Add New Device.
  • Tap on Get Started and select your language.
  • Follow the on-screen instructions and select the network of the existing router.
  • Enter the password of the router and connect the extender to the router.
  • Manage settings of the extender on the App and complete your Wavlink repeater setup.

Finish Setup

  • Once the Wavlink range extender setup is complete, the app will confirm that the extender is connected.
  • You can now connect your devices to the extended Wi-Fi network.

Frequently Asked Questions (FAQs)

How to Change the Admin Login credentials of Wavlink extender?

To change the admin login credentials of Wavlink, follow the steps given below:

  • Access web interface of the Wavlink extender.
  • Navigate to the Administrative Settings.
  • Here modify the admin login username and password.

How to update Firmware of the Wavlink extender?

To update Firmware, go to the Advanced settings in the web interface. After that, go to the Upgrading firmware and download the latest firmware if there is any.

How to set up the Wavlink extender other than using the web interface?

The alternate method to complete the Wavlink WiFi extender setup is Wavlink mobile app.

How to set a new SSID and password for the Wavlink extender?

To set a new SSID and password, the steps are:

  • Go to the security option in the web interface.
  • Then click on the Edit button.
  • Here enter the current and new password.
  • Click on the Apply Changes button.

How to reset the Wavlink extender?

Find the reset button on the extender. Press and hold this button for 10-15 seconds. A light starts to blink on the extender, wait till this light comes to solid.

Where can I see the default username and password for login?

You can find the default username and password of the Wavlink repeater setup on the label of the extender.

Can I access the Wavlink Wifi extender setup interface on the mobile device?

Yes, you can access the Wavlink WiFi extender setup interface of Wavlink on a mobile device also. Connect your mobile device to the extender and go to the interface through a web browser.

How to do Wavlink WiFi extender setup in Ap Mode?

To set up the Wavlink extender in Ap mode, you need to select the option AP Mode instead of Wavlink WiFi Range Extender in the setup wizard.
